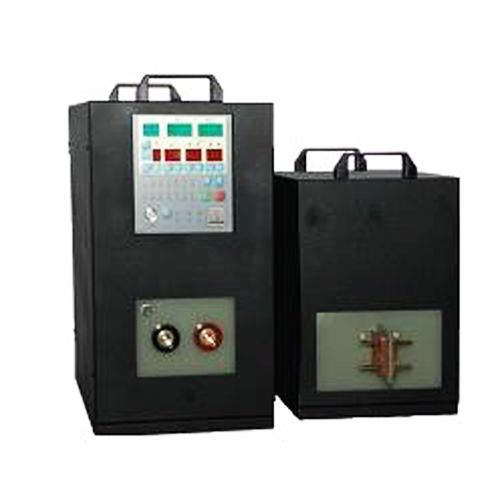

LT-35-80

Name: 偉祥實業有限公司
Address: 台中市南屯區精科南路99號六樓之五

商品介紹

Can do small workpiece forging, quenching, welding, etc. work
Made in Taiwan
The panel function has a nine-stage heating mode, and each heating power and time can be individually set and stored

Model	LT-35-80
Input voltage	220VAC (± 15%) three-phase 380VAC (± 15%) three-phase
Input power	35KVA
Oscillation frequency	30K～80KHz
Output voltage	AC 50VOLT max
Cooling water flow	20L/MIN, 2.5Kg-cm2 (35psi)
Host protection module	DC overcurrent protection AC overcurrent protection Under-phase protection Input overvoltage protection Output overvoltage protection Underwater protection Over temperature protection
Lead-out line	Start stop signal (3 WIRE) Machine running signal (3 WIRE, NO & NC FOR PLC) DC 0~5V power control (optional) RS-232 (FOR PLC, PDA, COMPUTER..) power control (optional) Temperature control (optional)
Estimated weight	Host: 39KG Heating head: 33KG
Estimated size	Host: Length 56CM (depth), width 28CM, height 51CM Heating head: length 49CM (depth), width 27CM, height 39CM

Infrared non-contact temperature probe: The temperature range is shown in the table below. There are four probes available.
Probe: -40~975° C, 100~600° C, 250~800° C, 385~1600° C
Digital temperature controller: 200mS sampling speed, PID temperature control, automatic logic calculation and optional RS-232 digital interface
